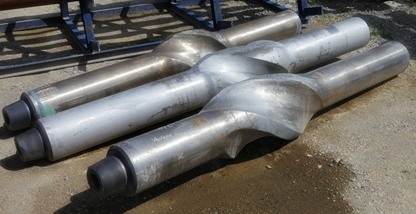

Integral Blade Stabilizers

Integral Blade Stabilizers are manufactured from AISI 4145H modified steel heat treated(also available in non-magnetic material). Blades are machined to provide maximum mud circulation and spiral milled left-hand or right-hand in three main configurations:

• Tight: Over 270° to 360°

Blade diameters are ground to customer specifications and hard metal is applied to leading edges for additional protection.

Integral Blade Stabilizers:

Please Specify When Ordering:

1. Drill Collar Size and I.D.
2. Type of Stabilizer: (String or Nearbit)
3. Type of Hard Metal: (Durham Powder, Permalloy, etc.)
4. Spiral Type.
5. Connection Type and Size.
